YL series dual-value capacitor single-phase asynchronous motors are designed and manufactured according to the national standard JB/T7588. They have excellent starting and running performance, low noise, low vibration, compact structure, light weight and convenient maintenance. It is widely used in mechanical equipment such as air compressors and water pumps as power.

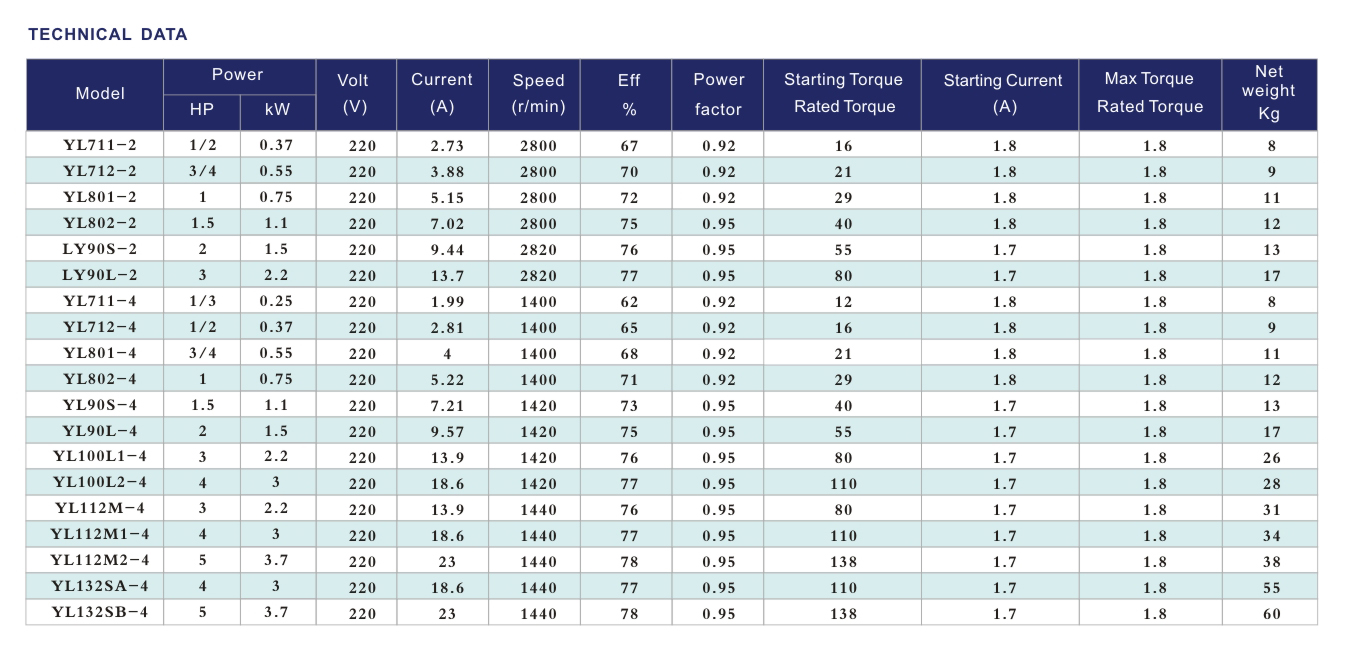

Product related parameters:
Base center height: 71-100mm
Power range: 0.25~3.7KW
Rated voltage: 220V (other voltages need to be negotiated separately)
Rated frequency: 50Hz (or 60Hz)
Protection level: IP44
Insulation class: Class B
Working system: S1
Installation type is the same as Y2 series
